RTS Belt-Packs from Absolute broadcast

RTS DBP Digital belt Pack
ROAMEO Beltpack.png
RTS BP325 3_4 front.png

DBP is a four-channel/four-button wired beltpack that runs on PoE+ (Power over Ethernet 802.3af and 802.3at) and connects using OMNEO IP technology. Its unique hybrid design supports both digital partyline and matrix keypanel modes: for use as a digital partyline device, DBP connects to an OMS; for use as a portable keypanel, including functionality like point-to-point communication, DBP can be connected to any RTS digital/IP matrix product using OMNEO – including OMI cards in ADAM/ADAM-M frames or OMNEO ports on ODIN frames. DBP automatically selects the correct mode of operation (digital partyline/OMS or keypanel/matrix) when connected and switched on.

DBP’s PoE-driven design gives it an unmatched level of scalability and makes it easy to add new users. In and Out PoE ports (two etherCON locking RJ45 connectors) allow up to six DBP devices to be daisy-chained together from the same PoE switch port when used in partyline mode. Up to 40 DBPs can be connected to an OMS, allowing for the creation of an extensive digital partyline system – all in addition to the other wired and wireless devices OMS supports. Depending on the matrix model/configuration, up to 64 DBPs can be connected to an OMI card for ADAM matrices, and up to 128 DBPs can be connected to one ODIN.

Our units are shipped with noise cancelling headsets - RTS HR-1 and HR-2 or the RTS lightweight headsets PH44 and PH88.

Hire RTS Digital belt pack

RTS DBP - Digital Belt Pack

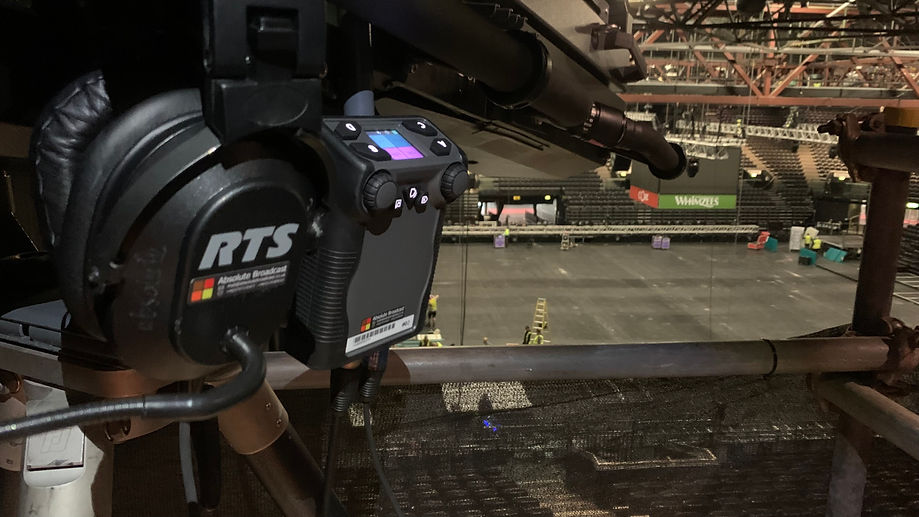

RTS DBP used on follow Spot.jpeg
crufts-2022 Logo.webp
RTS HR-2 noise cancelling headset
RTS HR-1 noise cancelling headset
RTS PH88 Light weight headset
CC26K light weight headset


Rent RTS TR1800 belt pack
Hire RTS ROAMEO wireless belt pack
RTS TR1800 and flight case

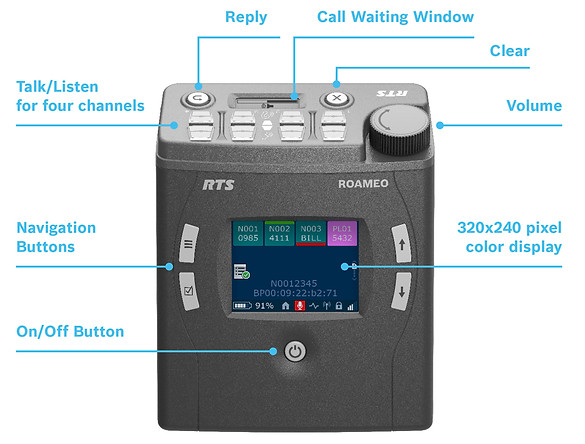

The ROAMEO system is setup and connected using IPedit and once up and running, the TR-1800 belt packs channels can be set up through scroll lists using the menu functionality on the unit itself or from a computer using AZedit. Once connected the belt pack displays in AZedit just as any key panel would and using the AZedit function 'reported by intercom' the panel page will display the belt pack as a 4 key panel. It is possible to programme the belt packs in exactly the same way as you would programme a panel. Thanks to its large color TFT-display, intuitive icon-based menu structure and multi-language help screens, the TR-1800 beltpack is very easy to set up and operate. The four talk/listen buttons are shaped differently and provide users with a tactile feedback, allowing operation of the device in low light conditions and without the need to look at it. With its lightweight, durable housing, the beltpack has the smallest enclosure in its class and is protected against dust and light rain. The software of the TR-1800 beltpack can be upgraded easily using an USB Flash Drive. All Absolute Broadcast's TR1800 come with the holster and strap, further enhancing the physical onsite user experience. These units sound really good. Our units are shipped with noise cancelling headsets - RTS HR-1 and HR-2 or the RTS lightweight headsets PH44 and PH88.


RTS BP325 Dual Channel Beltpack

RTS BP-325 dual channel beltpack
RTS Dual Chanel Belt pack

Absolute Broadcast has 20 x BP325 in stock and can provide these with RTS HR-1 single sided noise cancelling headsets or RTS HR-2 dual sided noise cancelling headsets. The BP325 has both 4 and 5 pin headset capability. We can ship complete two wire systems ( see Two wire page ) We also stock the PS31.

We can build and spec systems to Client requirements and even build ODIN based systems that combine our ROAMEO wireless belt packs and wired BP-325's. This gives the flexibility of allowing key members of the production team to use the wireless belt packs and the standard fixed positions like follow spot or show caller to use the wired BP-325.

Hire RTS 2 to 4 wire converter
RTS DPB on Belt
